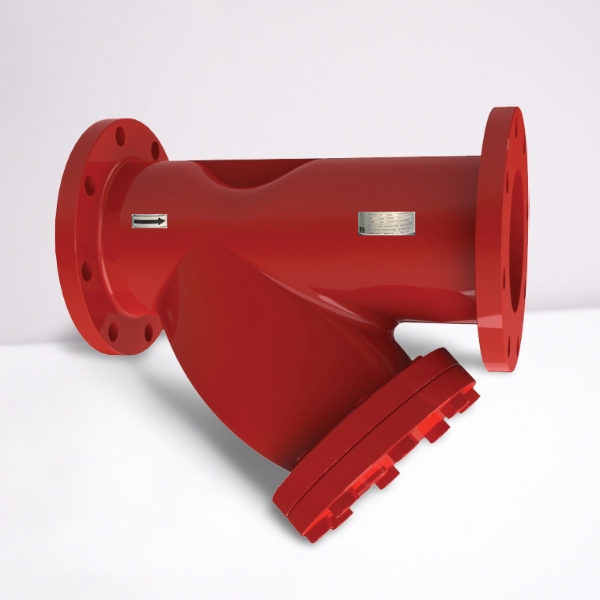

white-table-designify (16)

Strainers

Y- Type Strainers – Model 5200

Design Features

Size:

1/2” to 24” (15mm to 600mm)

Rating:

Class 150 – Class 2500

Features:

Flange RF, RTJ & Butt-Weld End
Bolted Cover & Drain Connection
40mesh / 60 mesh or as per requirements.
Casting / Fabricated Design
Forged Body up to 2″ (50mm)
Socket, Screwed up to 2″(50mm)

Reference Standards

Design:

ASME B16.34 / ASEM Sec VIII Div.1

Testing:

API 598

End to End Standards:

Maker’s Standard

Flange Drillings:

ASME B16.5 , EN 1029

Butt- Weld End :

ASME B 16.25

Socket Weld :

ASME B 16.11

Screwed End:

ASME B 1.20.1

Material Testing:

NDE , NACE MR 01- 75
