Ball Valve

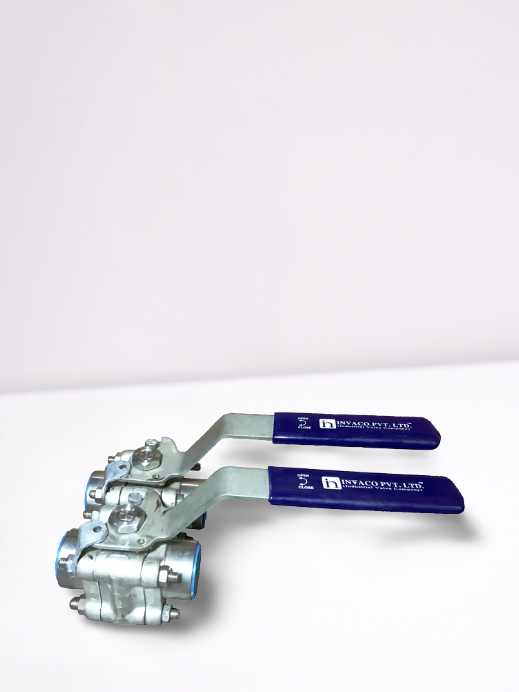

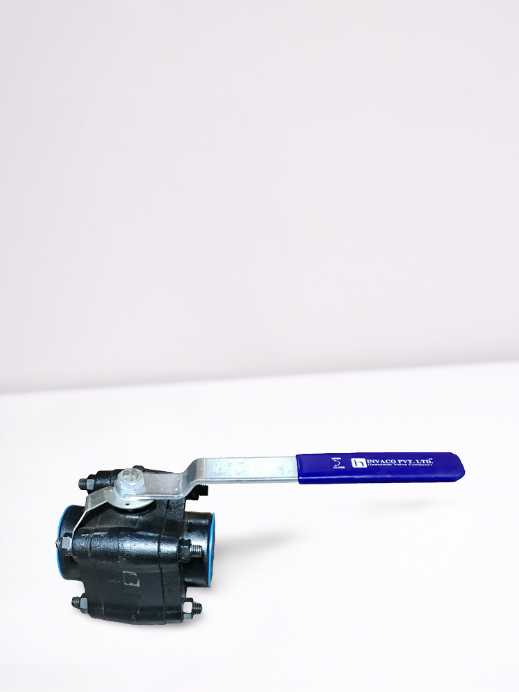

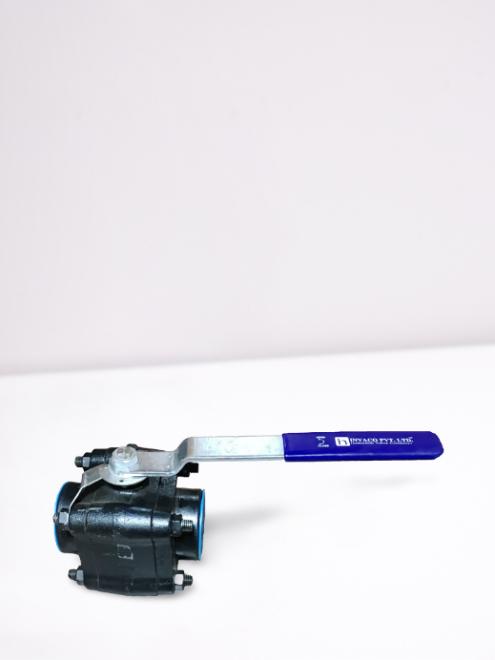

Forge Ball Valve – Model 4900

Design Features

Size:

½” to 2” (15mm to 50mm)

Rating:

Class 800 – Class 1500(Forging)

Features:

Three Piece, Full & Reduce Bore, Forging Body
Fire Safe Design
Blow Out Proof Stem
Anti-Static Design
Locking Arrangement
Socket, Screwed, Butt-Weld with Pup Piece End

Operations:

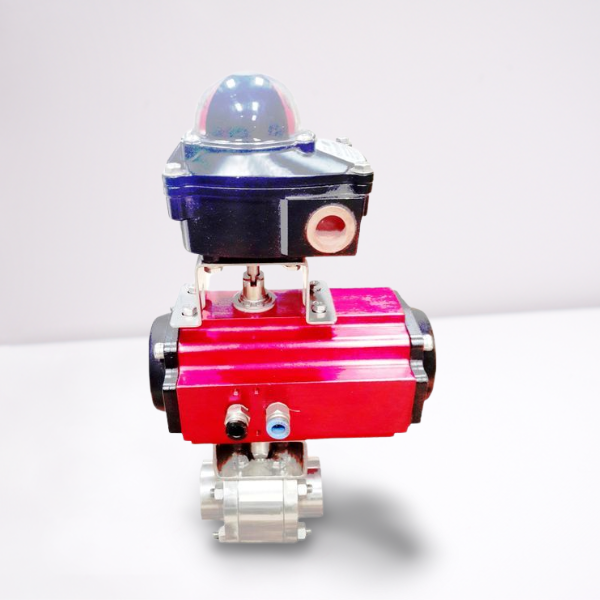

Lever & Actuation

Reference Standards

Design:

ASME B16.34, BS 5351

Face to Face :

Manufacturing Standard

Testing:

API 598, BS 6755

Screwed:

ASME B1.20.1

But Weld:

ASME B16.25

Socket Weld:

ASME B16.11

Fire Safe Design:

API 607 & API 6FA

Top Work:

ISO 5211

Special:

NACE MR 01-75
