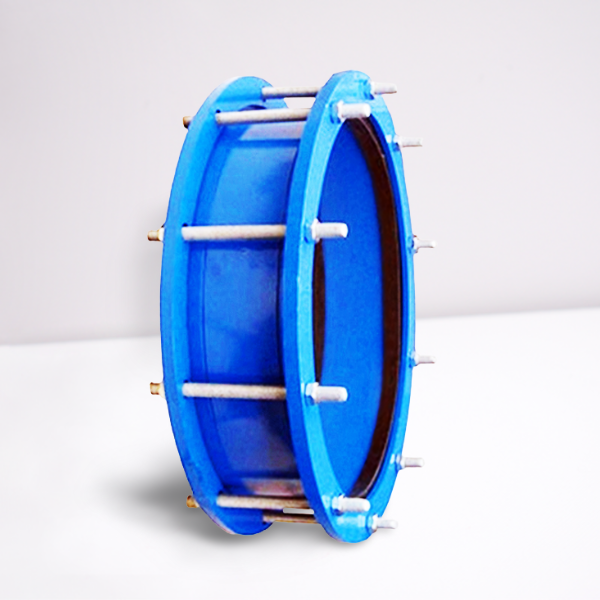

Flange Couplings – Model 8500

copuling

Flange Couplings

Flange Couplings – Model 8500

Design Features

Features:

Available for any size outer pipe diameter.
Leak tight connection
Eliminates corrosion ( joining of dissimilar material)
Epoxy Fusion Bonded painting / coating
Use when gap in pipe are wider that ordinary

Reference Standards

Design:

AWWA C219 / ASME B 16.34

Flange Drilling:

ASME B16.5 & B 16.47/ EN1092

Size:

2″ (50mm) – 160″ ( 4000mm)

Face to Face:

Maker’s Standard

Shell Design:

ASME B 16.34, ASME Sec VIII
