Butterfly Valve

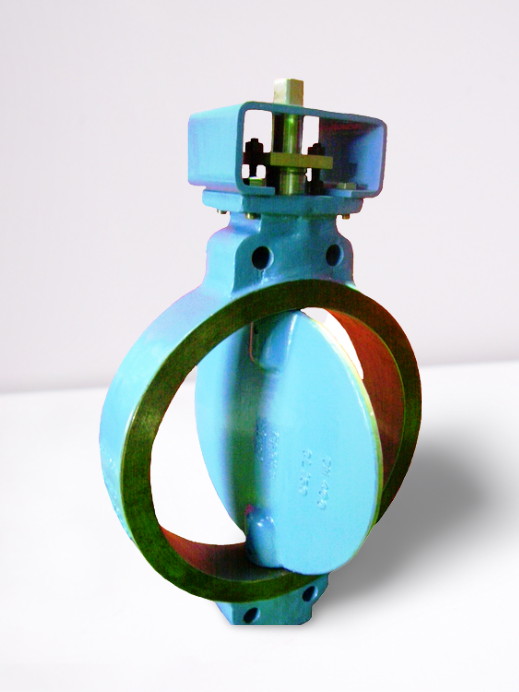

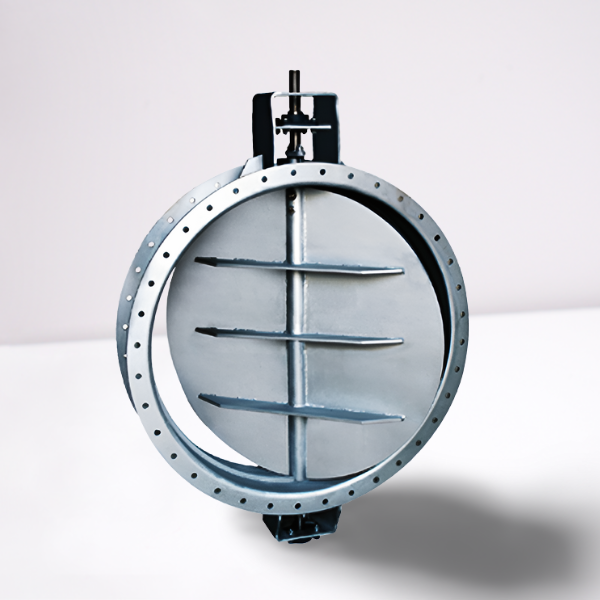

Damper Butterfly Valve – Model 9300

Design Features

Size:

2” to 160” (50mm to 4000mm)

Rating:

Class 150, PN5, PN10, PN16

Temperature:

– 49°C to 800°C

Features:

Blow Out Proof Stem
Wafer, Lug & Flanged Design

Operations:

Bare Stem, Manual & Actuation

Reference Standards

Design:

ASME B16.34, API609, BS 5155

Face to Face :

API609, EN558

Drilling:

ASME B16.5 & B16.47, EN 1092

Testing:

FCI70.2 CL-II, ISO 5208, API 598

Top Work:

ISO 5211

Special :

NACE MR 01-75
